Threaded fittings are an essential component in various piping systems, providing a reliable way to connect pipes, valves, and other components. If you’ve been wondering what threaded fittings are and how they work, this comprehensive guide will walk you through their types, uses, and benefits. With the right knowledge, you can determine if Threaded Fittings are the perfect solution for your project.

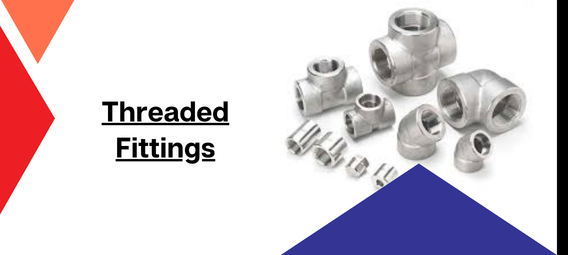

What Are Threaded Fittings?
Threaded Fittings are mechanical components used to join pipes and other fittings by utilizing screw-threaded connections. Their design allows for easy assembly and disassembly without the need for welding or special tools, making them an excellent choice for systems that may require regular maintenance or adjustments.
Threaded connections were one of the earliest methods of creating pipe joints. Today, they are still widely used because of their simplicity, versatility, and cost-effectiveness. They cater specifically to low- to medium-pressure piping systems, such as plumbing, irrigation, and industrial applications.
Threaded Fittings Types
Threaded Elbows
Elbows are used to change the direction of the pipe flow, either at a 45-degree or 90-degree angle. These fittings are ideal for systems requiring sharp turns or adjustments in tight spaces.
Threaded Tees
Threaded tees allow for branch connections in a piping system. They have one inlet and two outlets (or vice versa), which makes them suitable for splitting or combining the flow of liquids or gases.
Threaded Couplings
Couplings are straight fittings designed to connect two pipes of the same diameter. They are simple & effective in extending the length of a piping system.
Threaded Reducers
Reducers are used to connect pipes of different diameters. They are a must when the system flow transitions between pipes of varying sizes, ensuring smooth performance.
Threaded Caps and Plugs
Caps & plugs act as end seals for a pipe or fitting. Caps fit over the end of the pipe, while plugs are screwed into an open fitting to stop the flow.
Threaded Cross Fittings
Cross fittings have four threaded openings and are typically used in systems where fluid division is necessary. They are ideal for creating fluid or gas flow intersections.
Threaded Unions
Unions are a special type of coupling that allows for easy disconnection of pipes or fittings. They are used in systems where frequent maintenance or replacement is required.
Threaded Adapters
Adapters are versatile fittings used to connect different types of pipes or fittings, such as transitioning from threaded connections to other joining methods.
Applications of Threaded Fittings
Plumbing Systems
Threaded Fittings are extensively used in residential & commercial plumbing systems, especially for water and gas pipelines.
Irrigation Systems
Their ease of use makes them an excellent choice for agricultural irrigation networks & sprinkler systems.
HVAC Systems
Heating, ventilation, & air conditioning systems often rely on diverse Threaded Fittings types for flexibility and secure connections.
Oil & Gas Pipelines
Threaded fittings play a key role in connecting pipes for the low-pressure sections of oil & gas fields.
Fire Protection Systems
These fittings are widely preferred in sprinkler systems, where modifications & repairs might be common.
Industrial Manufacturing Systems
They are often used in manufacturing plants for chemical or fluid transport systems that operate under moderate pressure.
Benefits of Threaded Fittings
Easy Installation and Removal
Threaded fittings can be installed quickly without the need for advanced tools or high heat. This makes them well-suited for projects that require simplicity & flexibility.
Cost-Effective Solution
Compared to welded or flanged connections, threaded fittings tend to be more affordable and require less preparation time.
Flexibility in Maintenance
Since threaded fittings can be easily disassembled, they allow for frequent maintenance, repairs, and replacements without disrupting the entire system.
Leak-Proof Connections
Properly installed threaded connections, often combined with thread-sealing tape or compound, create reliable, leak-proof joints.
Compatibility with Multiple Materials
Threaded fittings are available in various materials, including steel, stainless steel, brass, & plastic, making them adaptable to many projects and environments.
Wide Range of Sizes
From small-diameter piping for household plumbing to larger industrial systems, threaded fittings come in a broad range of sizes to meet project-specific needs.
Reusability
Threaded fittings can be reused in other pipelines or applications, contributing to cost savings & sustainability.
Final Thoughts
Threaded Fittings are an indispensable part of piping systems, offering a reliable, cost-efficient, & versatile solution for connecting pipes. Their ease of installation, reusability, & durability make them a go-to option across industries like plumbing, construction, & irrigation.
